Description
CD-7 CARBON FEATURES:

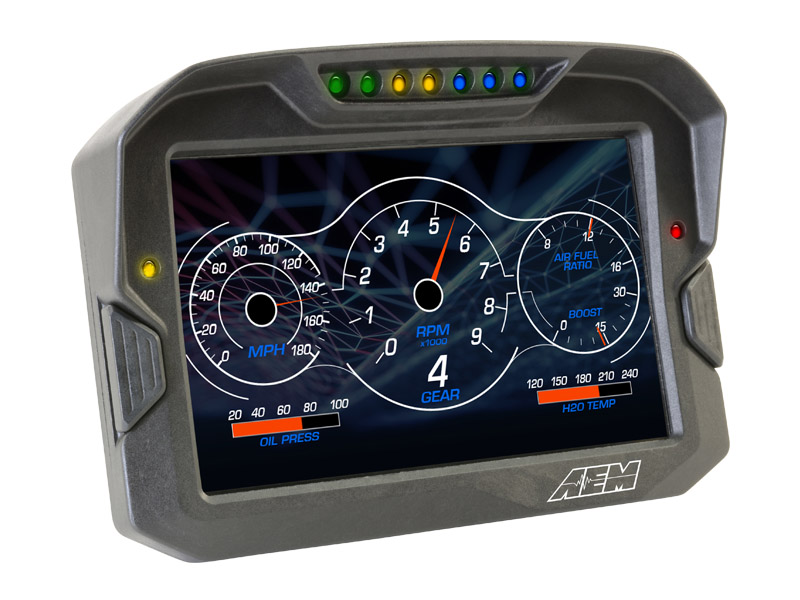

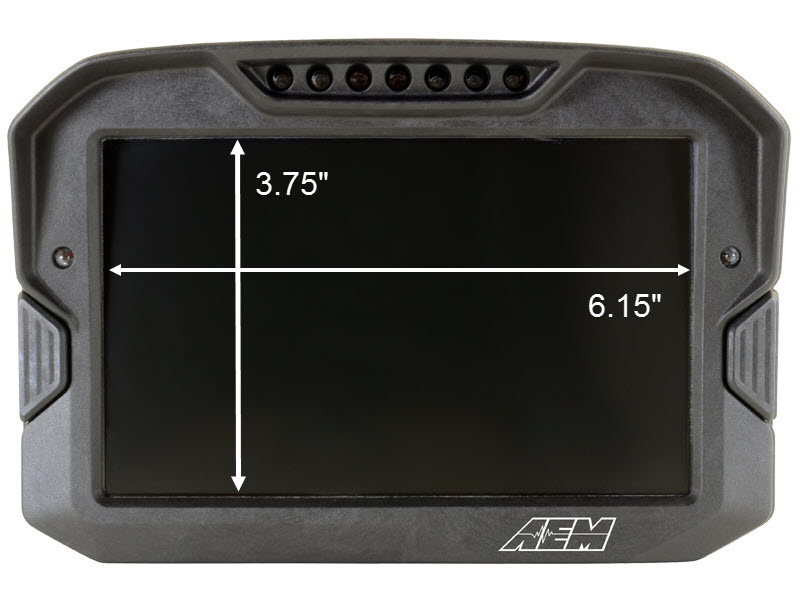

- Full color 7” screen with 800×480 resolution
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Layout files interchangeable with all versions of the CD-5 Carbon
- Wiring interface/harness is identical to the CD-5 Carbon
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Total display weight of 20.9 oz. / 595 grams
- IP65 water resistance – open cockpit, marine and motorcycle safe
- Accepts channels from two separate user programmable CAN bus connections – works with AEMnet enabled devices and non-AEM 3rd party devices side by side
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)

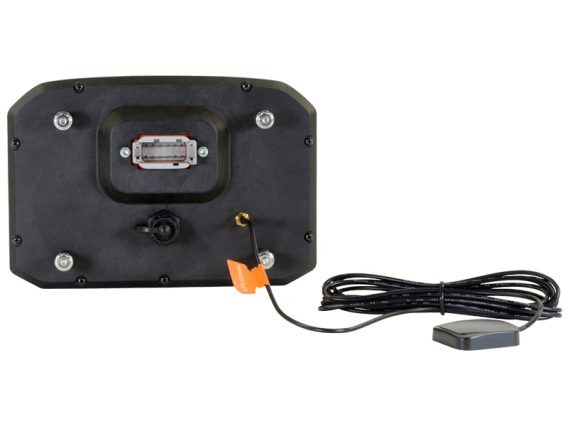

- Available with or without on-board 20Hz GPS receiver and antenna
- Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Use included page layouts and input your channels and text, or create your own from scratch
- Free DashDesign Graphics Editor software

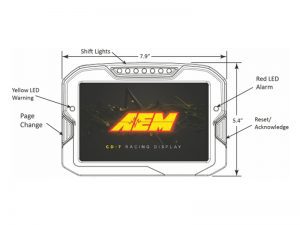

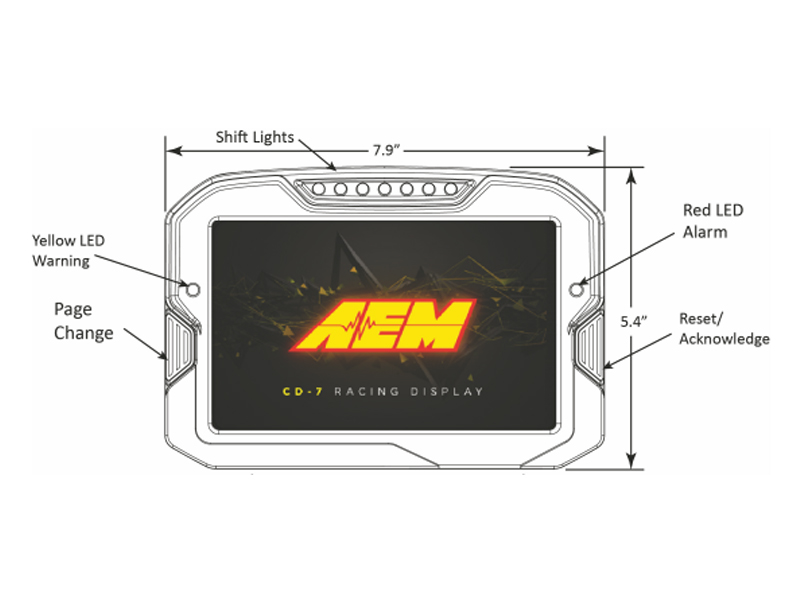

- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Two programmable LEDs
- Odometer function
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- ‘Headlight-in’ connection dims the dash and LEDs during night operation
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Convert CAN bus channel values to user-defined text in multiple languages
