Description

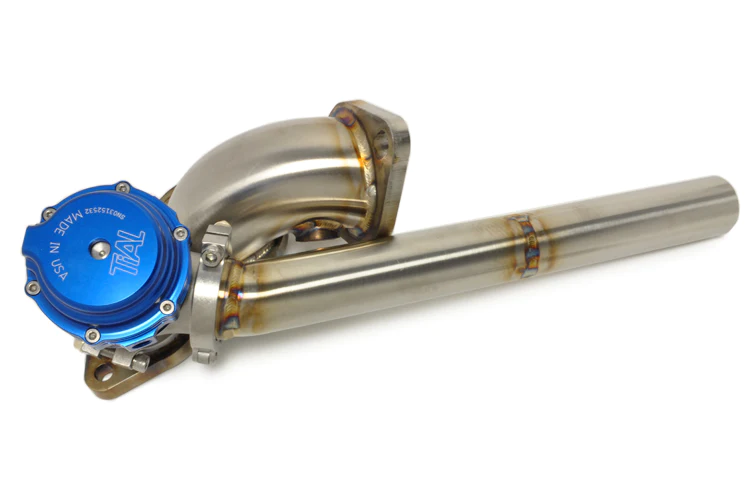

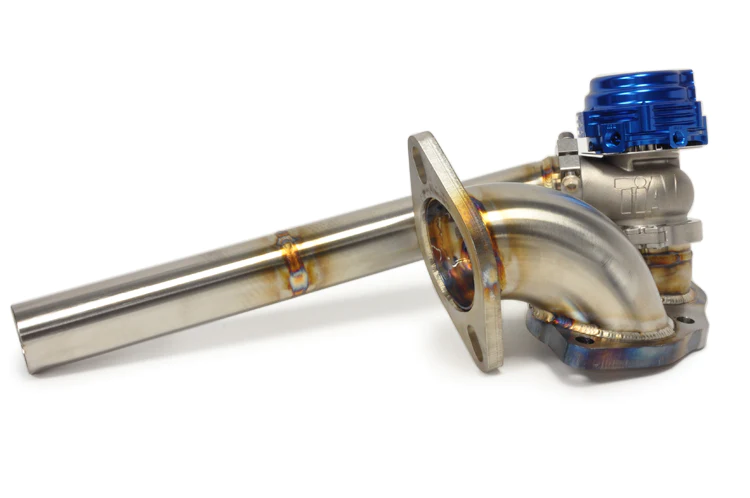

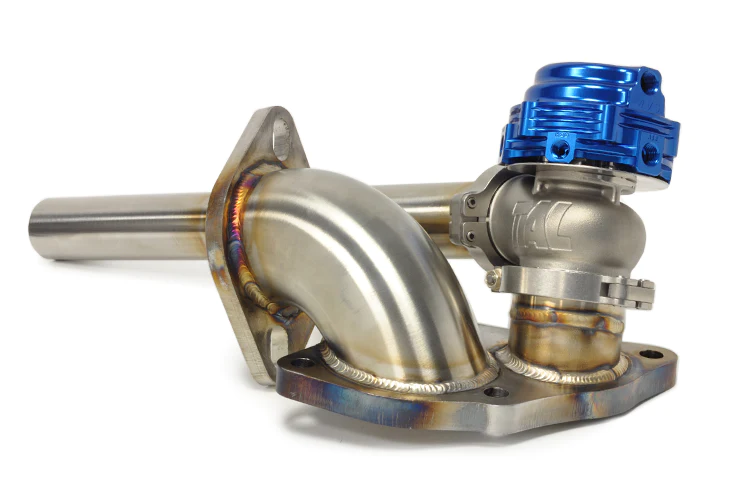

The STM O2 Housing Atmosphere Dump fits with the FWD 1G and FWD/AWD 2G DSM. Available with or without the 38mm TiAL MVS Wastegate with your choice of all 5 TiAL colors. Hand fabricated in the USA, tig welded in-house of stainless steel with a mild steel turbo flange to ensure the bolts stay tight for a good seal. New gaskets and hardware are included.
Vehicle Fitment:
* Not for 1G AWD *
1990-1994 1G Eclipse GST
1995-1999 2G Eclipse GST/GSX
1990-1994 1G Talon TSi FWD
1995-1998 2G Talon TSi AWD/FWD
1990-1994 1G Laser RS FWD
• Fits with Mitsubishi-style turbo
• Designed for the 38mm TiAL MVS
Features:
• Bolts to Mitsubishi Style Turbos
• Tig-Welded, Back-Purged
• 2.5″ 2-Bolt 3/8″ Thick Stainless Steel Exhaust Flange
• 1/2″ Thick Mild Steel Turbo Flange
• Gaskets & Hardware Included

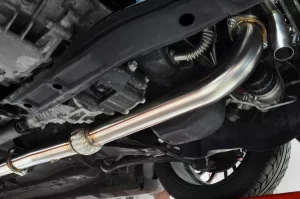

1G DSM Install Notes:
This will not work with the 1G AWD. The cross member is right in the way of the dump tube. The STM Recirculated Housing will fit 1G AWD.
Options:

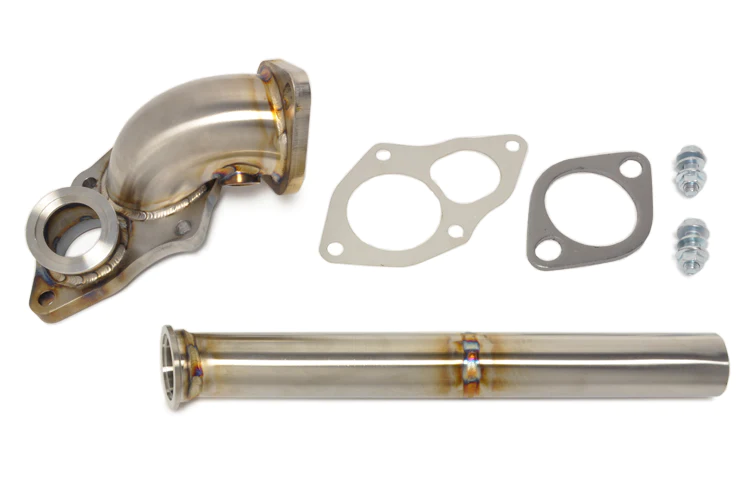

• With or without wastegate

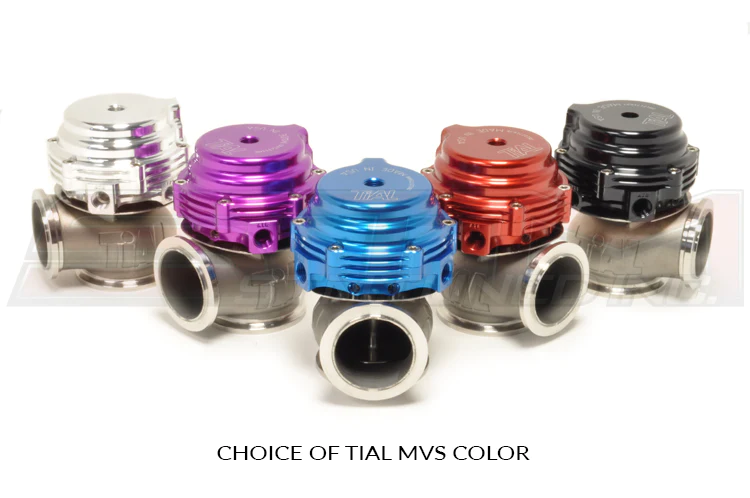

• Wastegate color

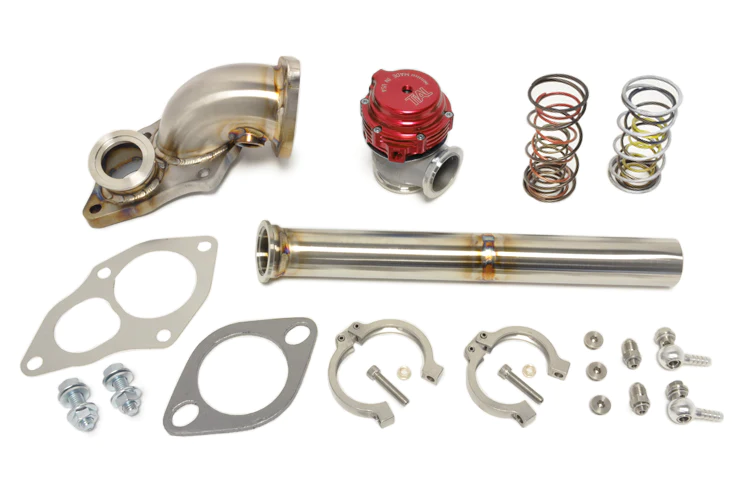

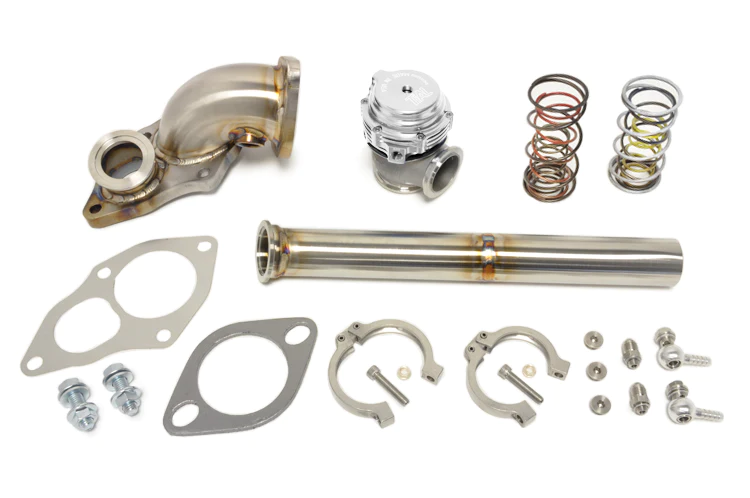

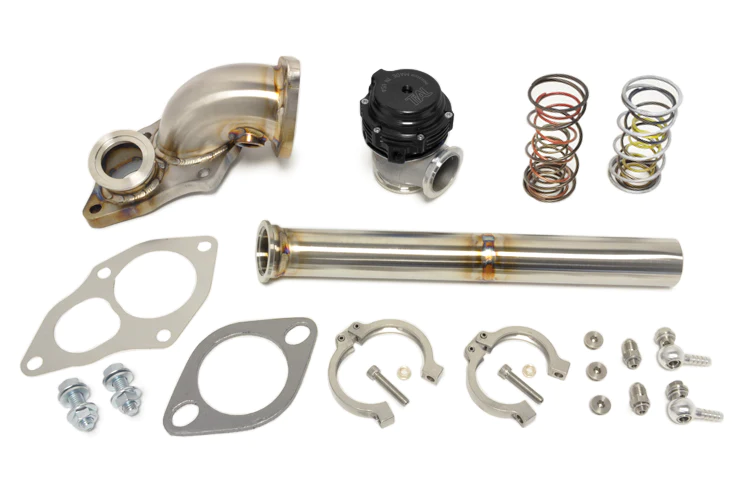

Includes:

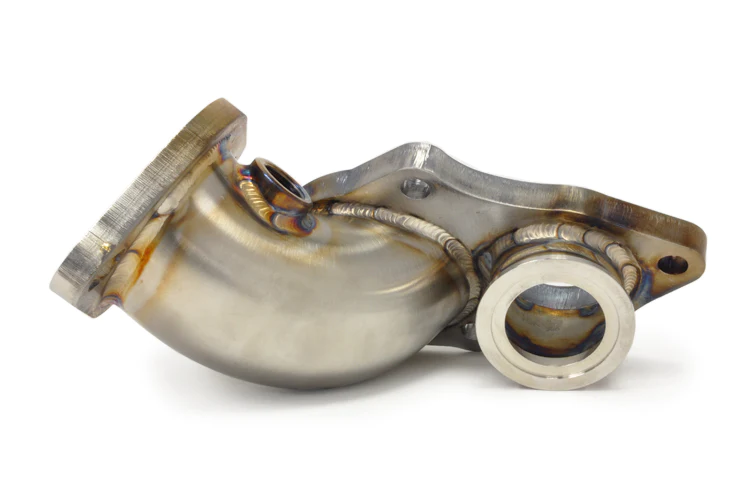

(1) STM O2 Housing with Dump Tube
(1) STM Stainless Steel O2 Housing Gasket
(1) Remflex 2.5″ Exhaust Gasket
(2) M10 x 35 Bolts
(2) M10 Flat Washers
(2) M10 Nuts
(*1) TiAL MVS Wastegate (*Optional)
Shipping Times: 1-14 Days
Hand crafted and welded in New York, please give our fabricators time to assemble your piece! TiAL may affect shipping times.
