STM 2G DSM Standard Placement V-Band Turbo Kit

$5,753.00$6,053.00

-

Vehicle Fitment:
1995-1999 Eclipse GST/GSX
1995-1998 Talon TSi
• For Speed Density (No MAF)

Description

There’s never been a better time to own a 2G DSM! The STM Standard Placement V-Band Turbo Kit is a direct, bolt on kit for your 95-99 2G DSM. The manifold, downpipe, dumptube and O2 housing are all USA-fabricated in-house at STM and we include all high-quality feed and drain lines, gaskets and necessary hardware along with the 4″ STM Intake Pipe Kit. Please note the Intake Pipe is a “SD” style, designed for DSM’s with no MAF.

Vehicle Fitment:
1995-1999 Eclipse GST/GSX
1995-1998 Talon TSi
• For Speed Density (No MAF)

Features:
• Hand Fabricated
• Tig-Welded
• Back-Purged
• Flanged for TiAL 44mm MVR Wastegate
• Mild Steel Head Flange to Prevent Pulling Out Studs
• Schedule 10 1.5″ Stainless Steel Manifold Runners
• Down pipe bolts to any factory-location cat or test pipe (3″ 2-Bolt)

Turbo Options:

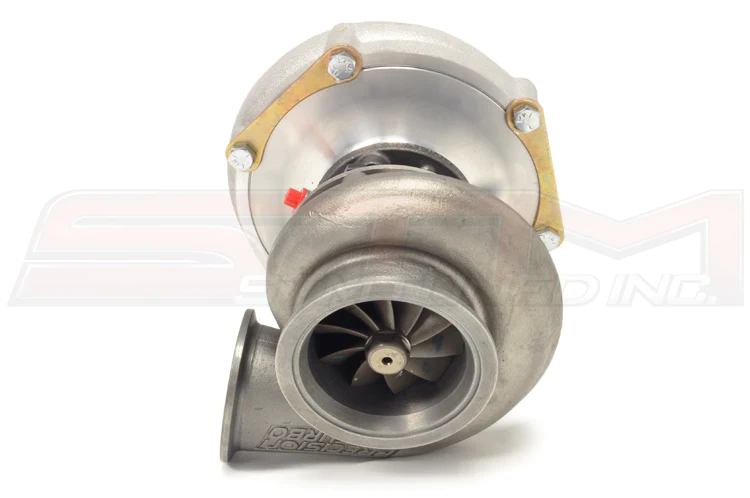

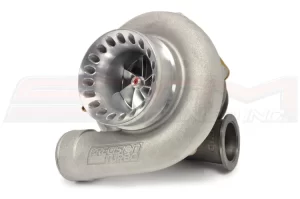

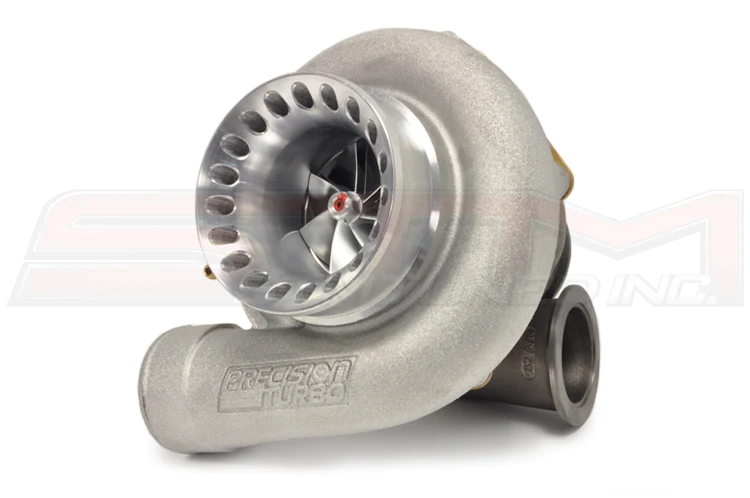

• PTE GEN2 PT6266 CEA Ball Bearing with SP Cover (Rated at 800 HP)
• PTE GEN2 PT6466 CEA Ball Bearing with SP Cover (Rated at 900 HP) (Pictured)
• PTE PT6766 CEA Ball Bearing with SP Cover (Rated at 935 HP)

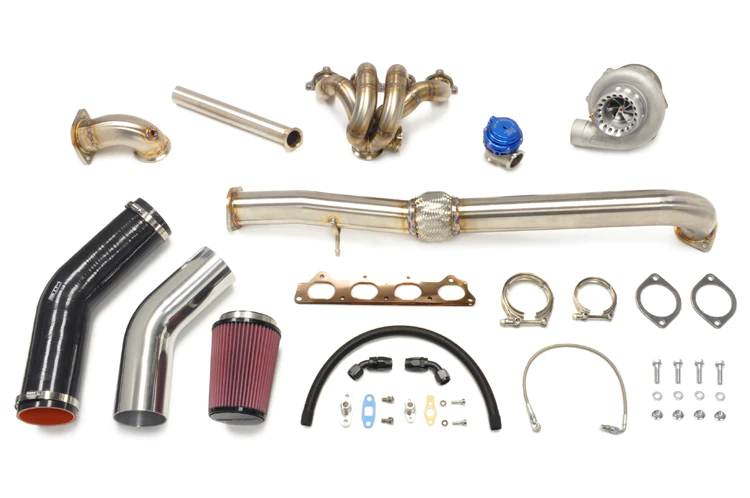

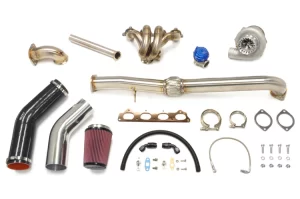

Includes:
(1) PTE V-Band In/Out Ball Bearing Turbo w/ SP Cover

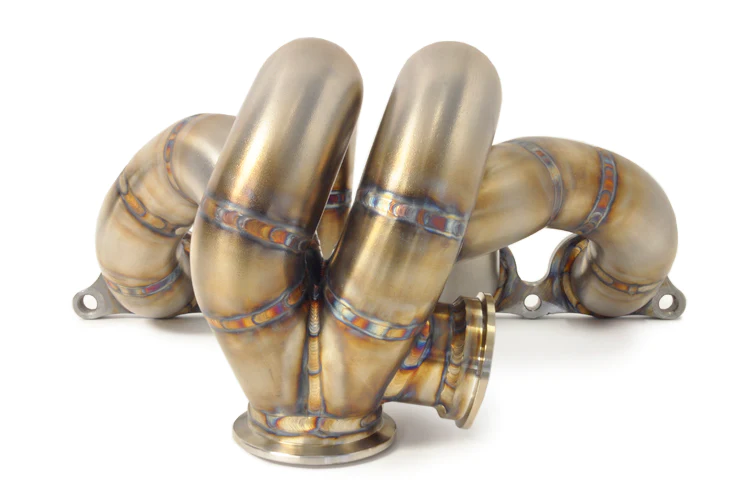

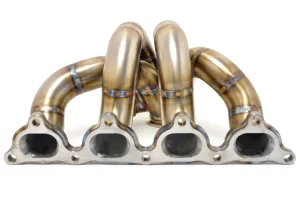

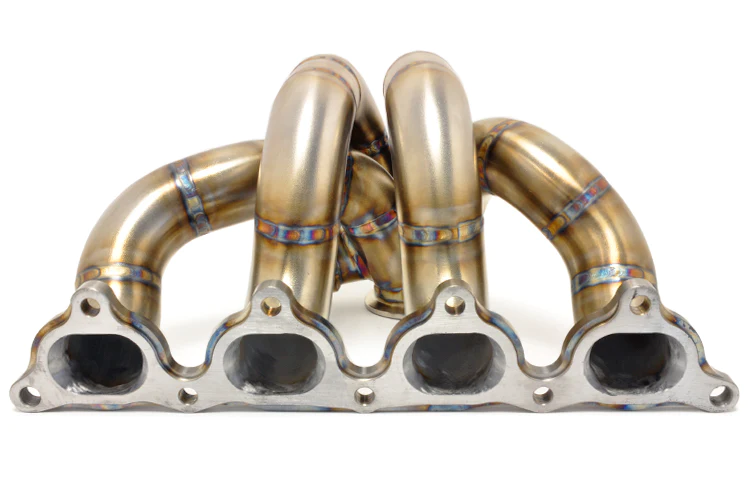

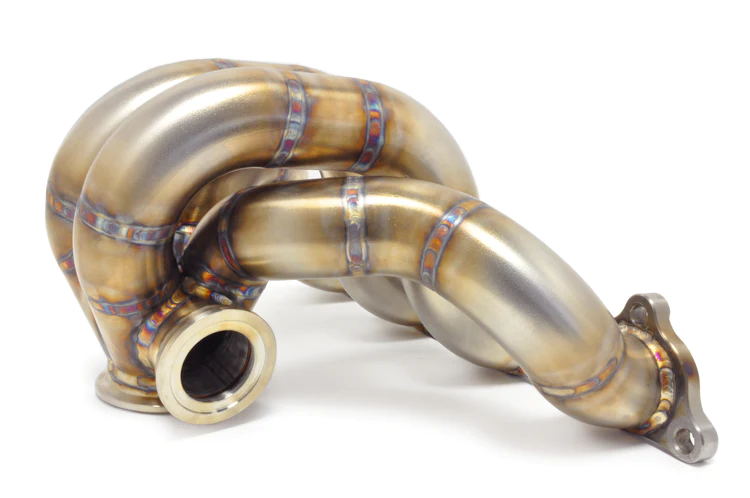

(1) STM V-Band Manifold

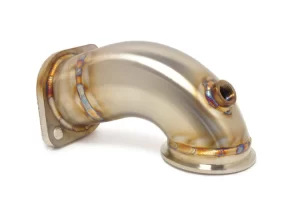

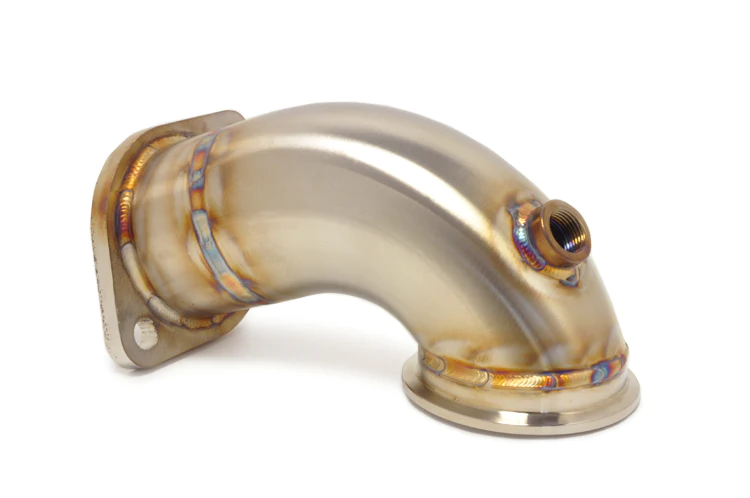

(1) STM O2 Housing

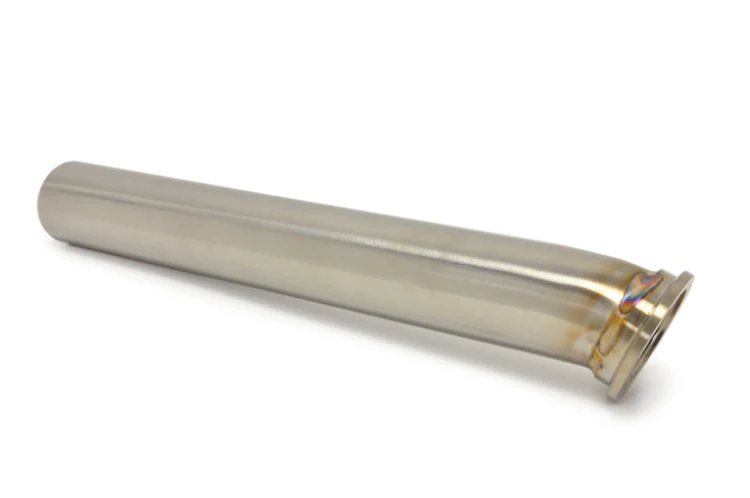

(1) STM Dump Tube

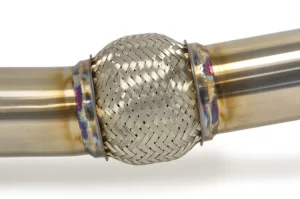

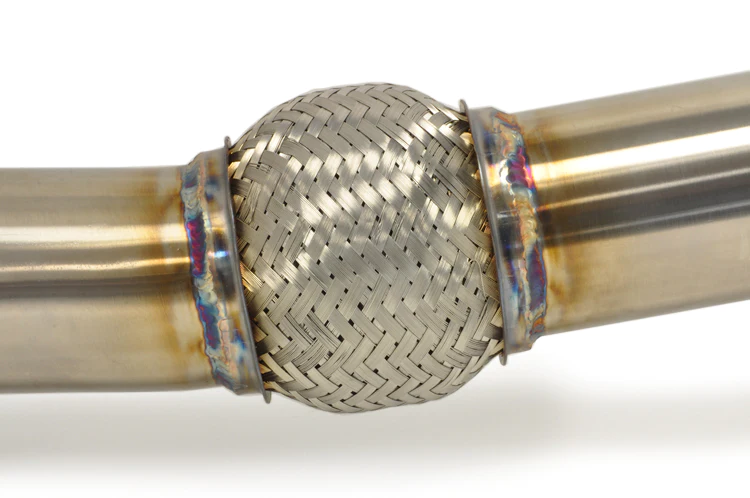

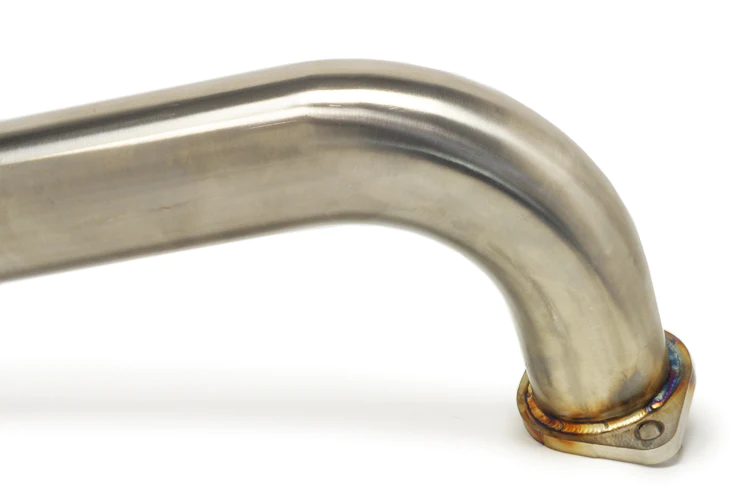

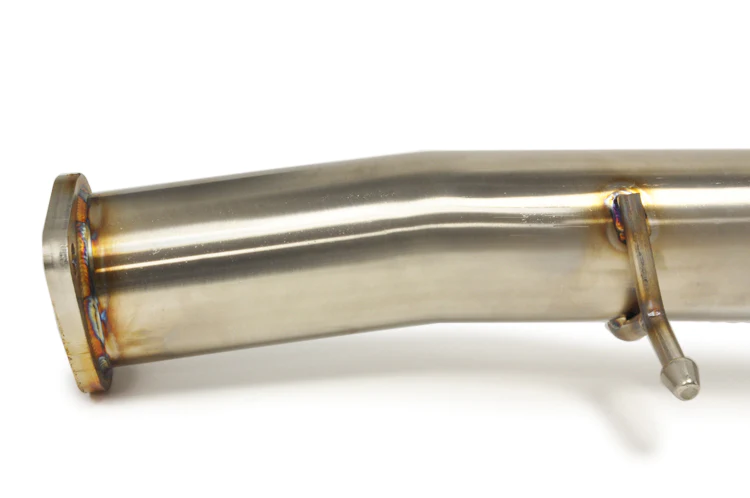

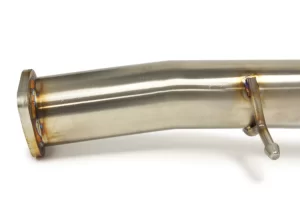

(1) STM Downpipe
(1) STM 4″ Intake Pipe Kit
(1) STM Oil Feed Line
(1) STM Oil Return Line
(1) V-Band Clamp for Turbo to Manifold (PTP071-1027)
(1) V-Band Clamp for Turbo to Downpipe (PTP071-1029)
(1) TiAL MV-R 44mm Wastegate (All Flanges & Springs included)
(1) OEM Mitsubishi Exhaust Manifold Gasket (MR323654)
(2) 3″ Remflex Gaskets for Downpipe
(4) Mounting Hardware – Bolts, Nuts Washers



Shipping Times: 4-6 Weeks
Hand crafted and welded in New York, please give our fabricators time to create your turbo kit!

Don’t forget your nuts!
2G DSM OEM Stud and Nut Kit

Additional information

Turbo Option:

PTE Gen2 6266 Ball Bearing (800HP), PTE Gen2 6466 Ball Bearing (900HP), PTE PT6766 Ball Bearing (935HP)

Wastegate Color:

Blue, Black, Silver, Purple, Red
