Description

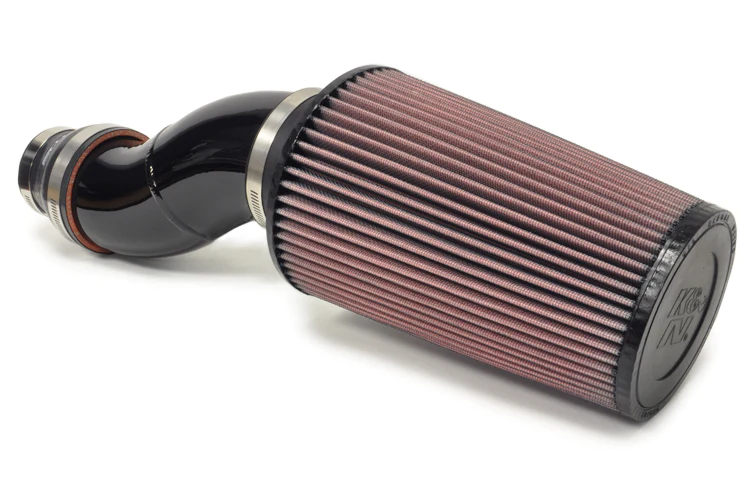

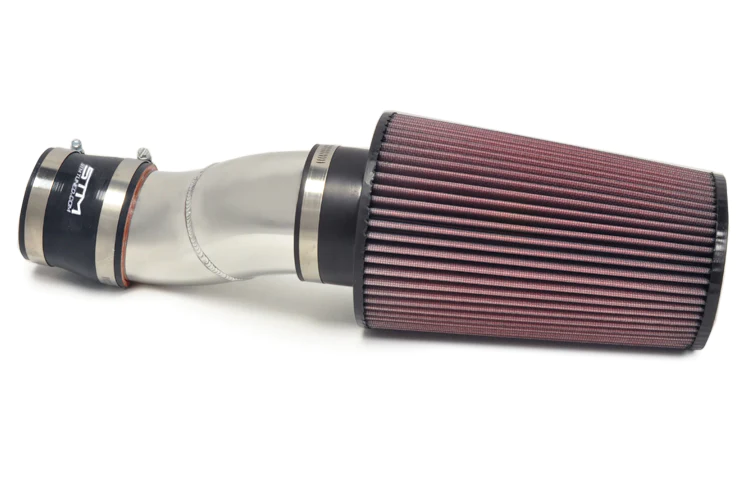

The STM 3.5″ Aluminum Intake Pipe was designed specifically for Evo 8/9 bolt-on FP Turbos such as the Red, Black, Zero and Zephyr (3.25″ inlets) but can also be used with a stock turbo by selecting the 2.5″ coupler, or any 3″ aftermarket bolt-on turbo. Features a 3.5″ aluminum intake pipe, 9″ long K&N filter and a high-quality silicone reducing coupler to match your turbo.
Vehicle Fitment:
2003-2006 Evolution VIII IX
• Designed for Bolt-On Turbos
• For Speed Density Only
• Does not work with the MAF
• Fits both ACD and NON-ACD models.
• Can be used with the STM Sealed Catch Can (with -10AN Bung)
Speed Density:
This intake pipe does not work with the MAF, and is used for speed density only.
ACD:
The STM 3.5″ Intake Pipe will fit both Evo 8 and 9 and will clear the ACD reservoir.
What’s the Bung For?

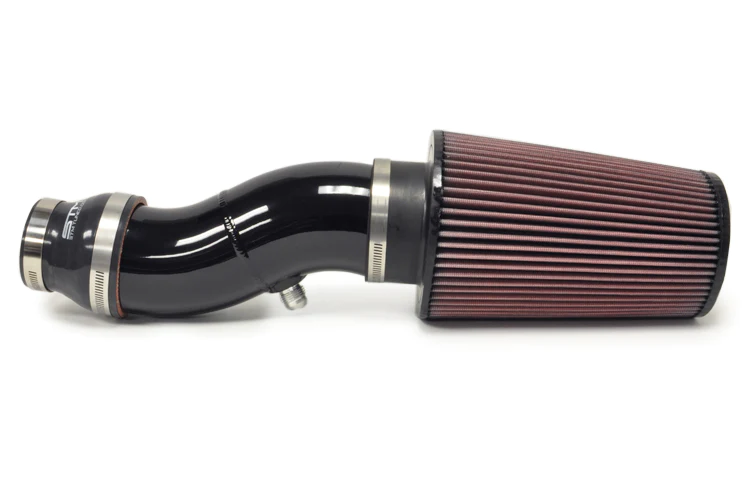

Adding the -10AN bung on the underside of the pipe is allows you to use the STM Sealed Catch Can which vents from the can to the intake pipe.
Install Notes:
If you’re not using a catch can, we would suggest to vent your crankcase via the valve cover.
Features:
• 3.5″ Tig-Welded Aluminum Piping
• Huge 9″ K&N Air Filter
• Fits ACD & Non-ACD
• Optional -10AN Fitting for STM Sealed Catch Ca
• For Speed Density
Options:
• -10AN Bung
• Coupler Size for Turbo

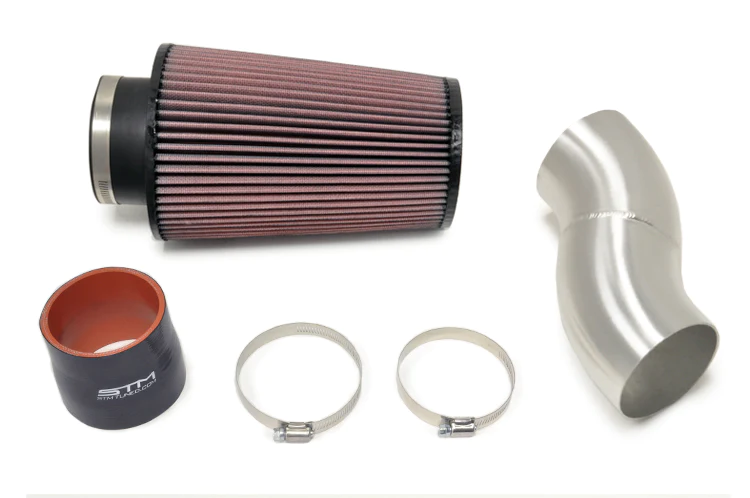

• Brushed Aluminum
• Polished Aluminum (+$30)

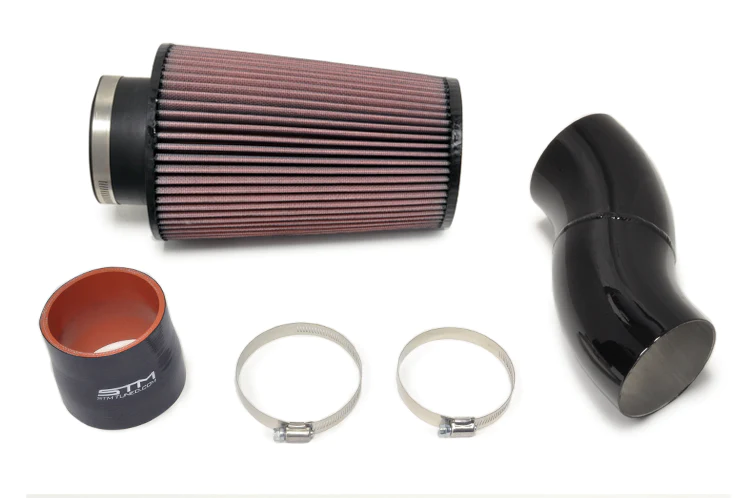

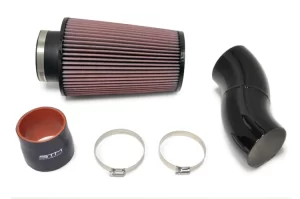

• Gloss Black Powdercoat (+$30)

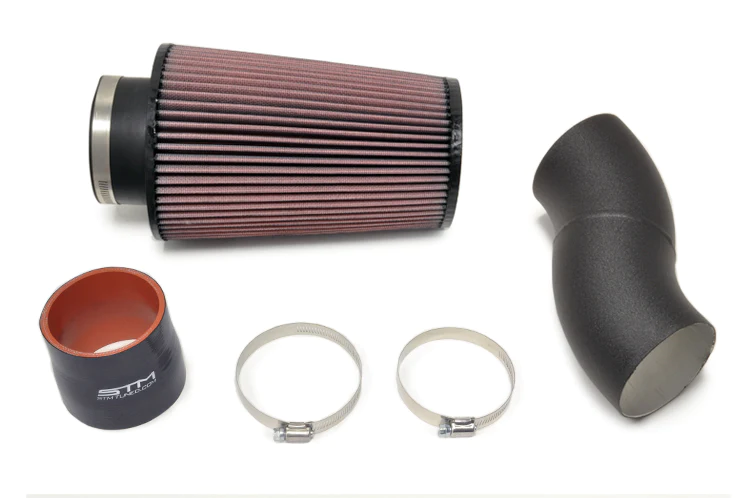

• Wrinkle Black Powdercoat (+$30)

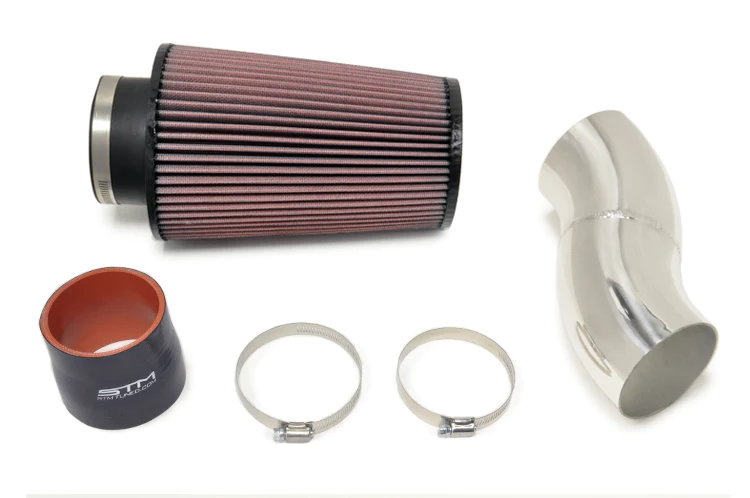

Includes:
(1) K&N Air Filter (RE-0920)
(1) STM 3.5″ Aluminum Pipe
(1) STM Reducing Coupler
(2) Worm Clamps for Coupler
