Description

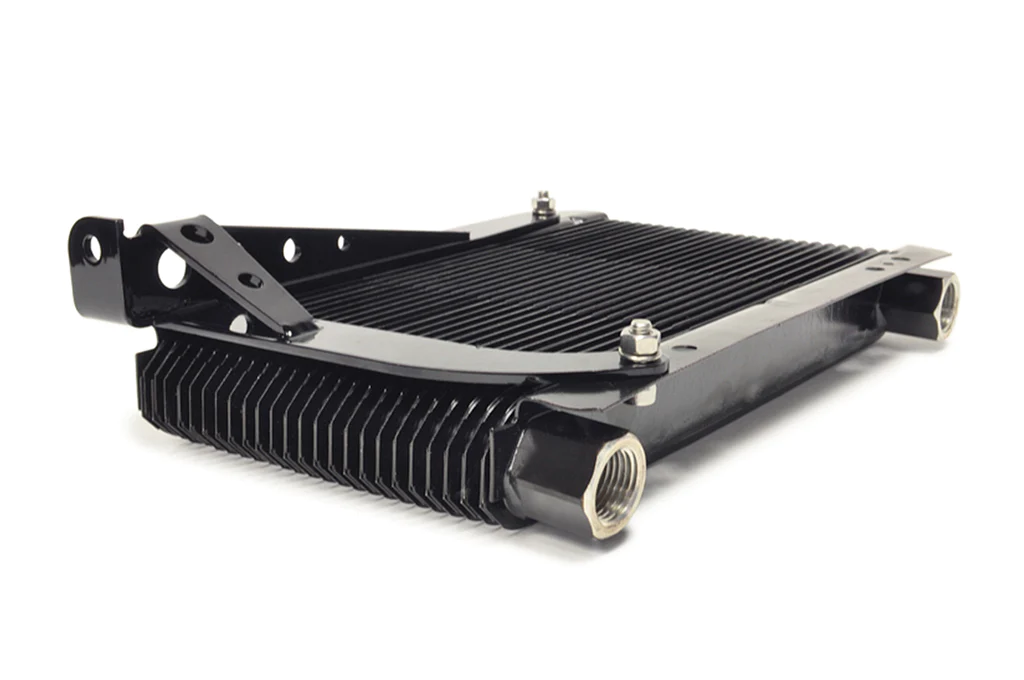

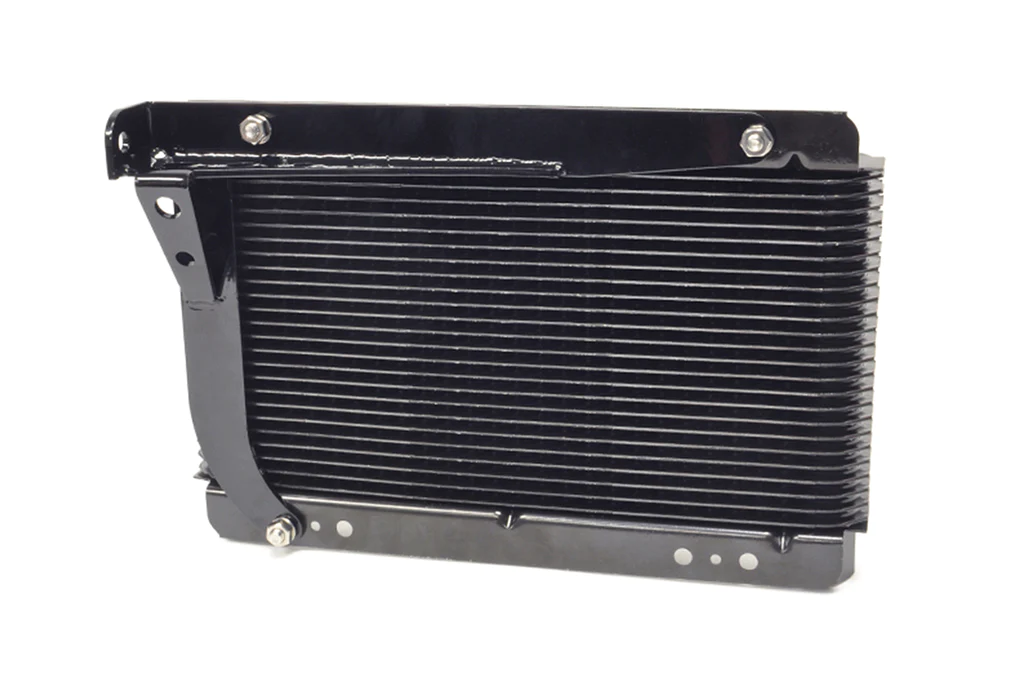

The STM Engine Oil Cooler Kit for Evo 7/8/9 is a direct bolt-on upgrade featuring a custom STM mounting bracket, B&M oil cooler and high-quality hose, fittings and hardware to attach to your factory oil filter housing for a clean and simple install.
If you purchased an older version of the STM kit and created your own bracketing solution, you can purchase just the STM Mounting Bracket. The STM brackets are different between the small (Standard) and large (Race) kits.
Vehicle Fitment:
2001-2006 Evolution VII VIII IX
Important Notes:
The fittings threading into the oil cooler are pipe thread. Over tightening pipe thread will cause things to break. If you are not familiar with it, please seek professional installation.
Features:
• Easy to bolt in to factory location
• Strong, laser cut, tig welded and powder coated bracket
• Includes everything needed to install
• Nylon-covered stainless braided hose won’t scratch finishes
• Low-profile 90° fittings for the oil cooler
B&M Oil Cooler Dimensions (Small):
• 11″ Wide
• 5.75″ Tall
• 1.5″ Thick
• Part Number 70273

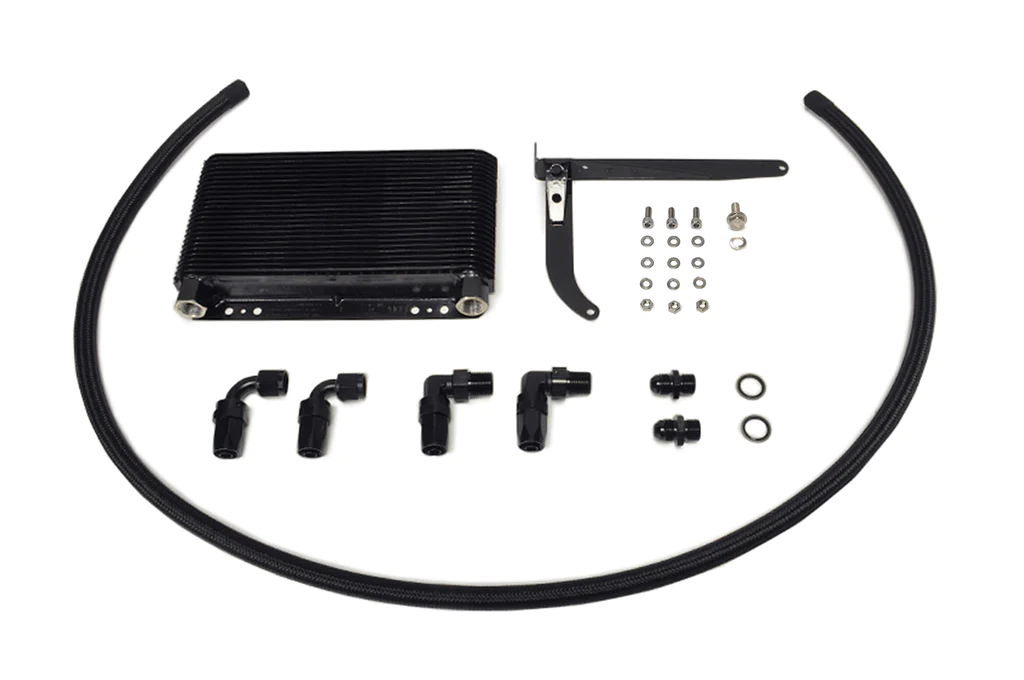

Includes:

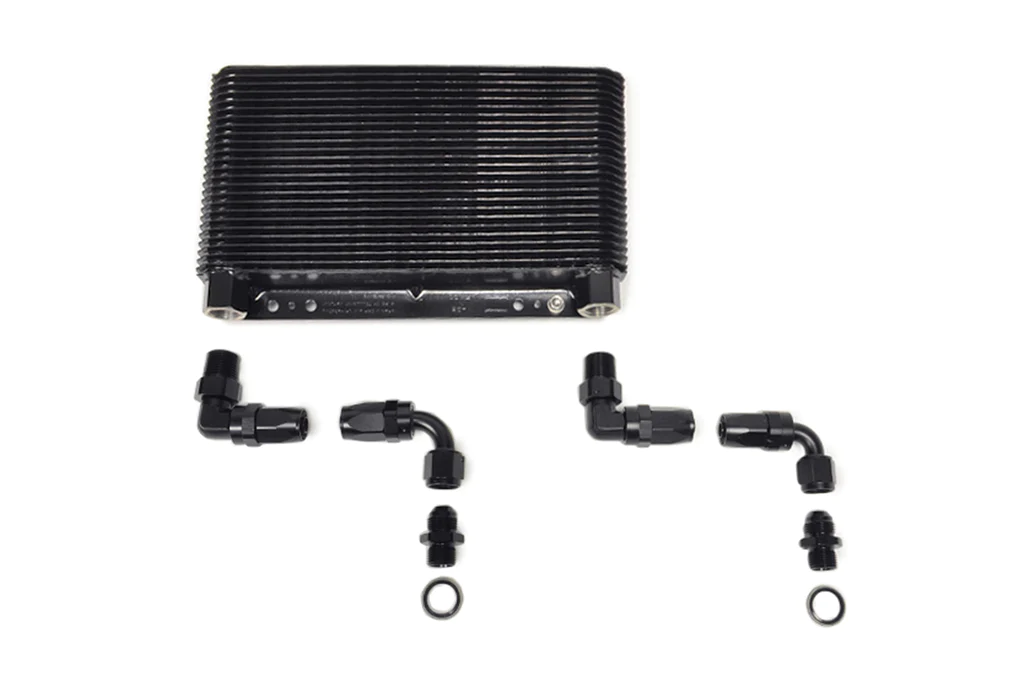

(1) B&M Oil Cooler (70273)

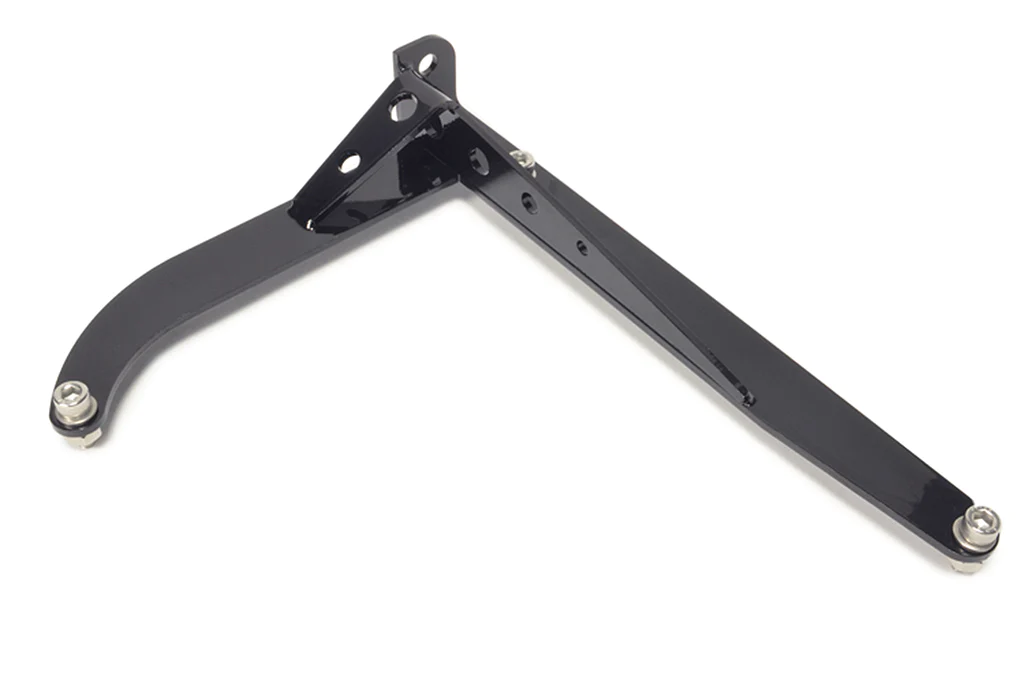

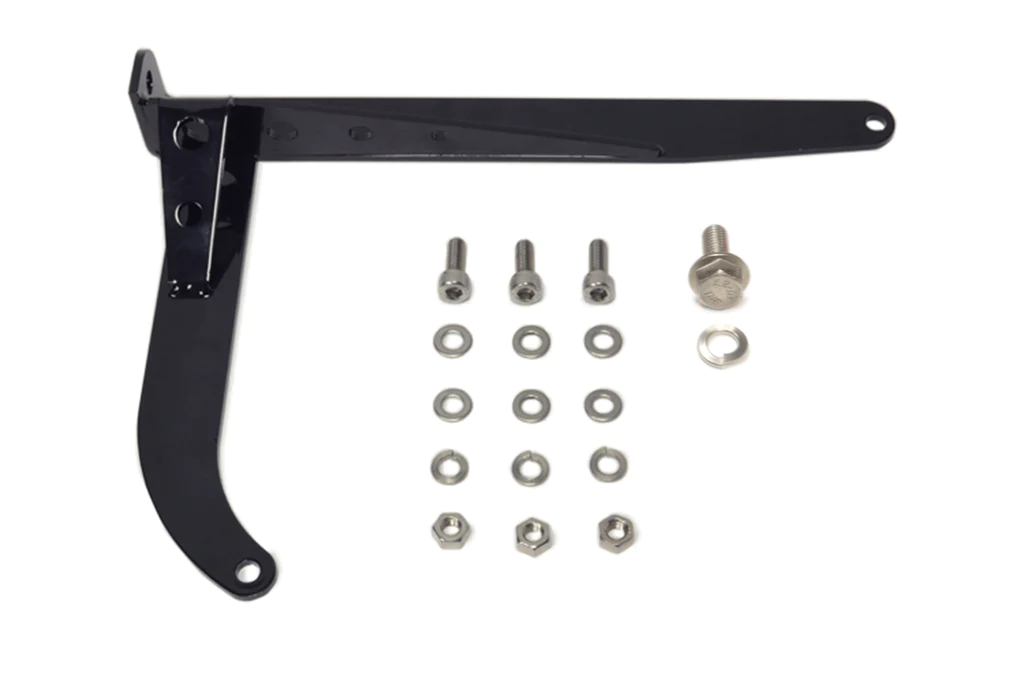

(1) STM Mounting Bracket (STM-EVO89-OCKBRK-S)
(1) 5-Feet -8AN Nylon Hose
(2) Vibrant -8AN 90° Swivel Fittings (21908)
(2) Vibrant -8AN to 1/2″ NPT 90° Fittings (26905)
(2) Vibrant -8AN to M18 Fittings (16627)
(2) OEM Mitsubishi Washers (MR464563)
(3) M6 x 16 Stainless Allen Bolts
(3) M6 Stainless Nuts
(3) M6 Stainless Lock Washers
(6) M6 Stainless Flat Washers
(1) M8x20 Stainless Hex Bolt
(1) M8 Stainless Lock Washer
