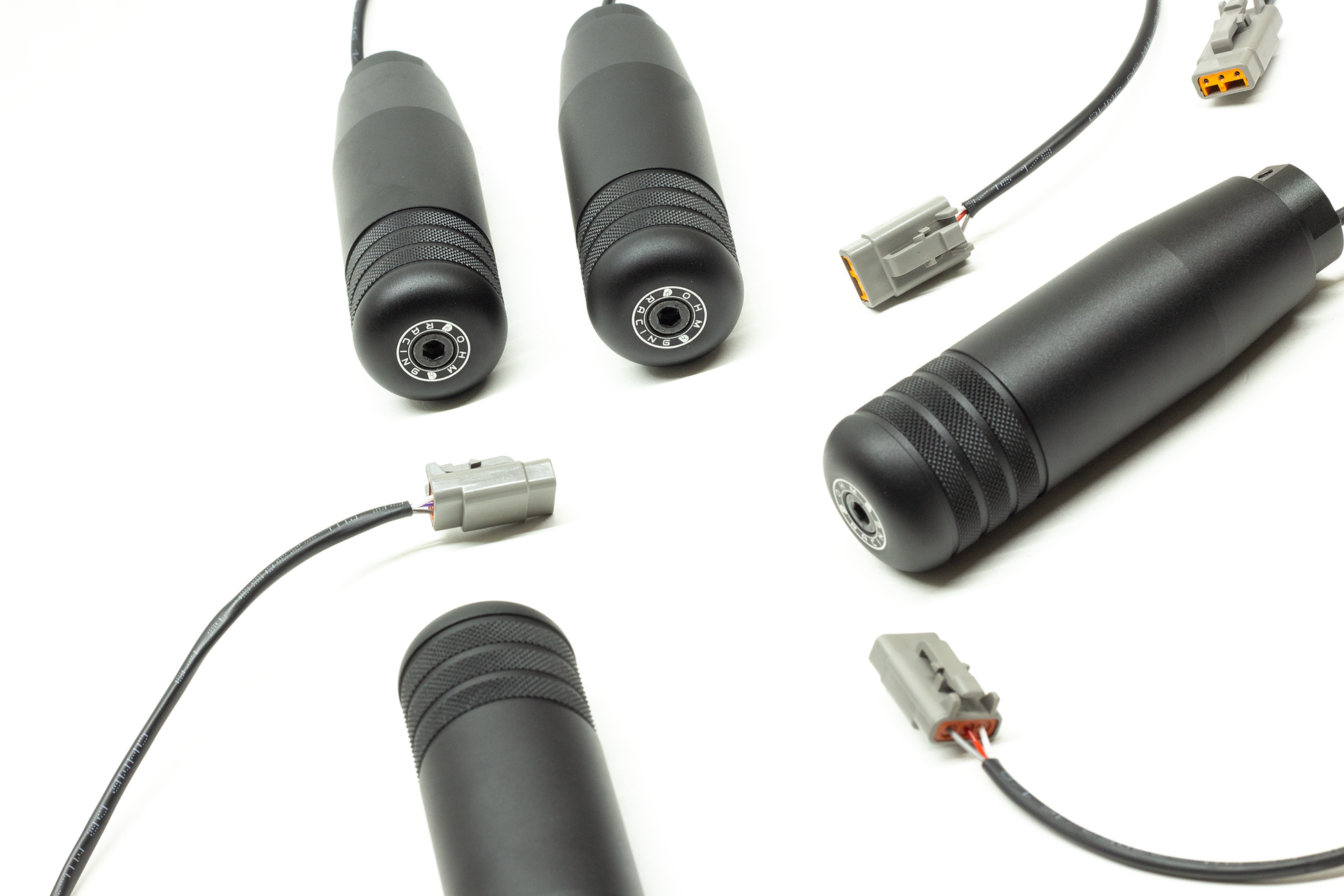

FlatShifter OHM Strain Gauge/ Load Cell kit Gear Shift Knob (5V) *V3*

OHM Racing V3 Update from 2025, improved geometry and design for better feel.

- Anodized black billet aluminum

This lever load cells are beautifully designed for the detection and measurement of tension and compression forces in gear shift application. Simple installation with only a 3 wire connection needed. The output signal is proportional to the amount of force and is linear 0.5 to 4.5V output suitable for most common ECU’s. Configuration is available for either Sequential or ‘H’ Pattern Gearboxes. The typical application is for uses such as: Flat Shift, Quickshifter, Torque Cut, Ignition Cut and Clutch-free Gearshift on race vehicles.

The load cells are generally installed on top of the gear change lever and will detect the level of force applied by the driver to change gear. Connect straight to your standalone ECU, no external controller needed.
