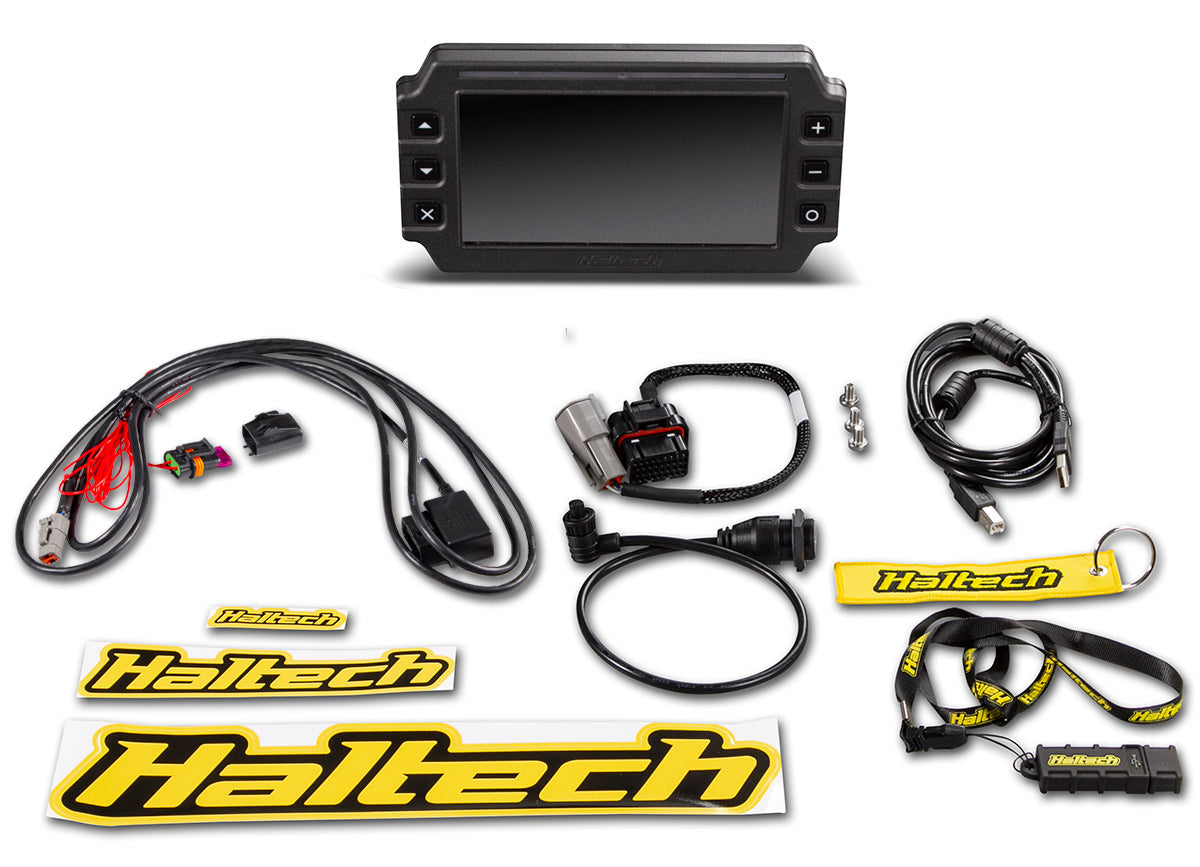

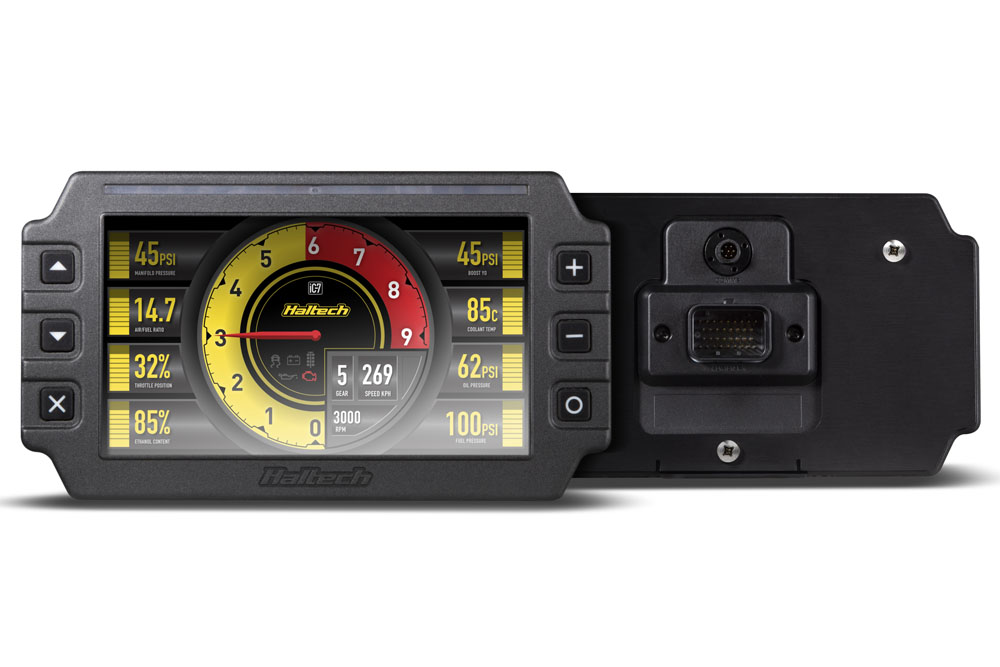

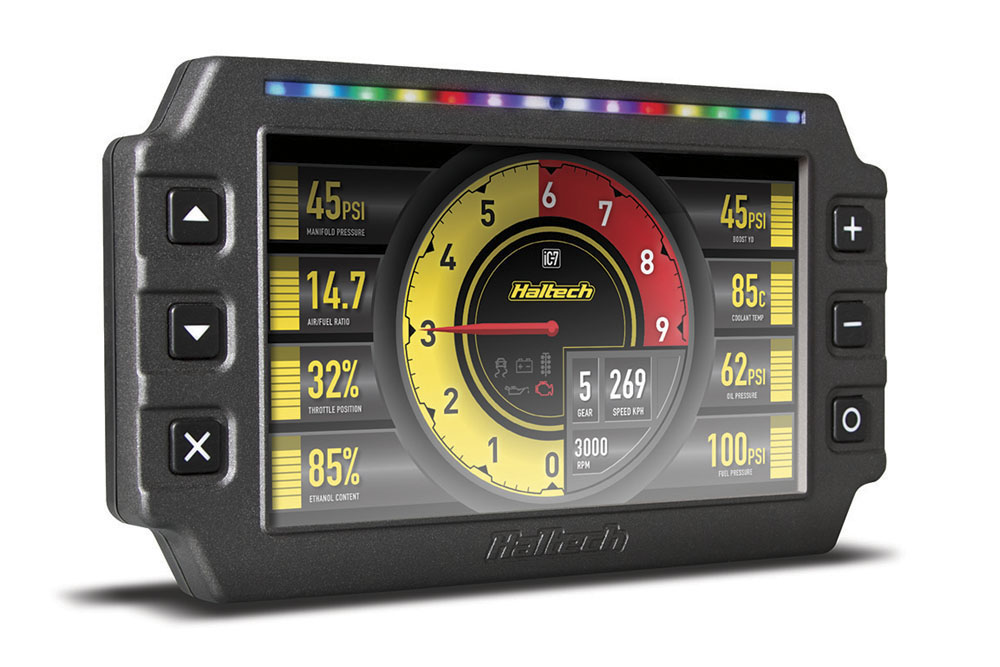

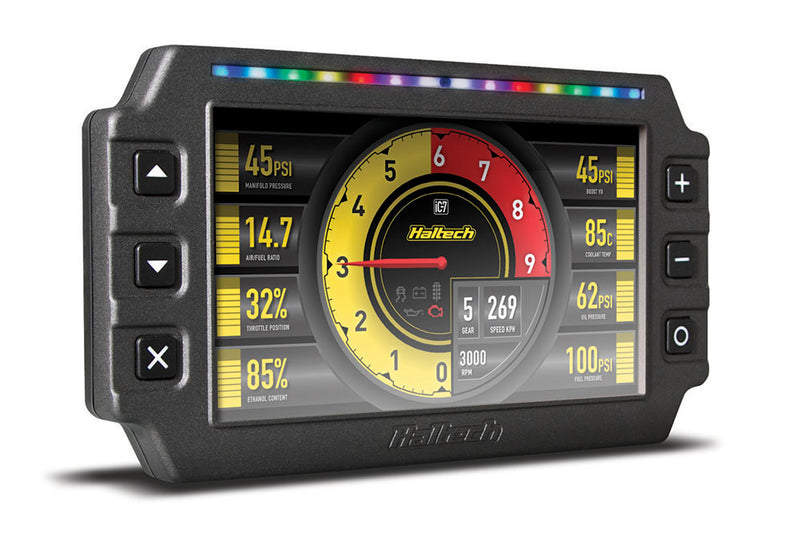

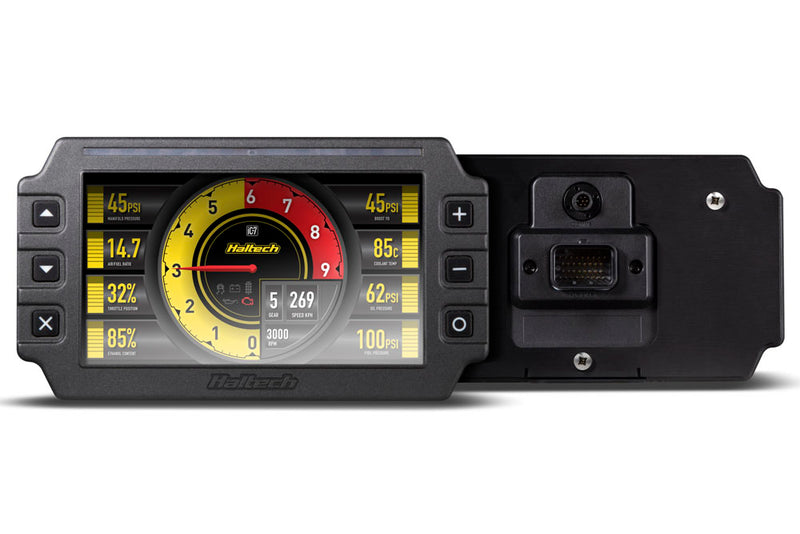

Haltech IC-7 Display Dash

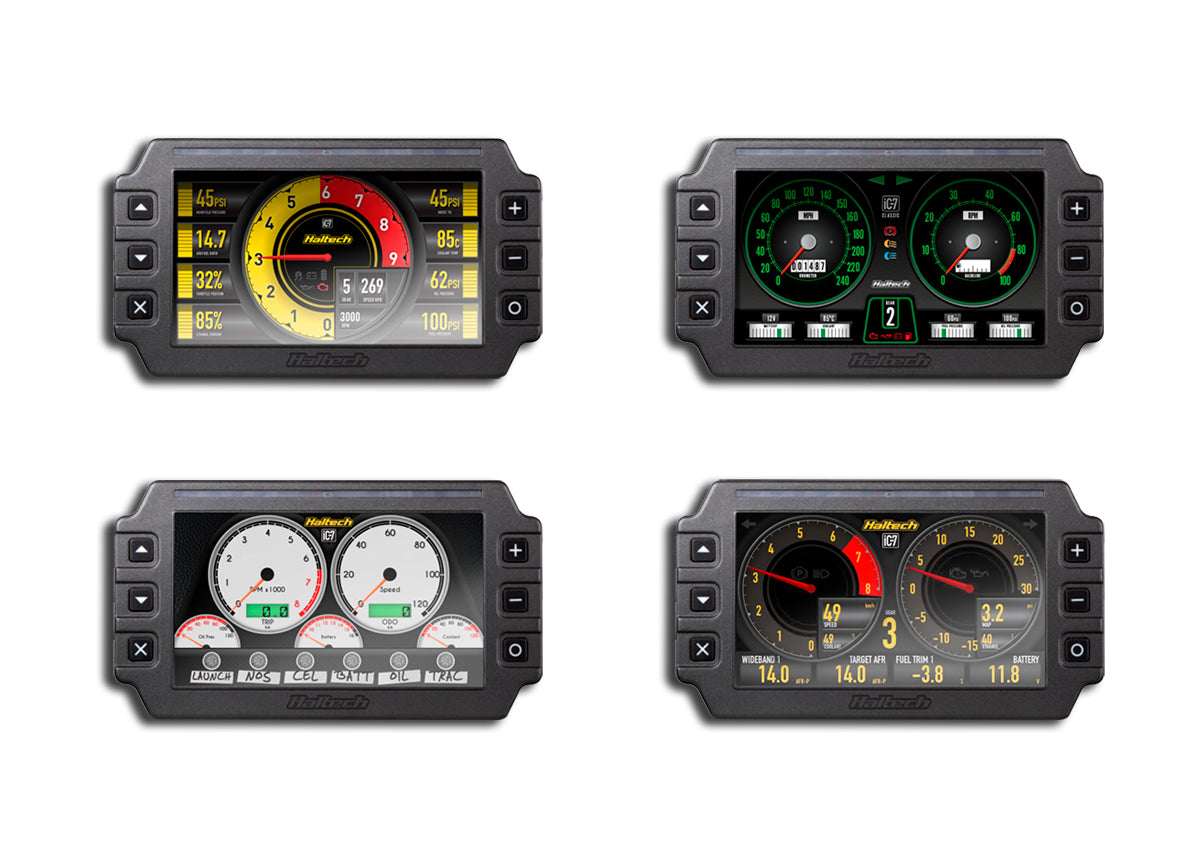

Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the IC-7 connects directly to all current Haltech ECUs via a CAN network. The IC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port. • Ideal replacement for individual analogue gauge clusters. • Easy to install and configure. • User adjustable brightness control with automatic dimming. • User configurable channels, units and alarms. • 14 programmable, seven colour shift light LEDs. • Controlled via easily accessible, face-mounted control buttons. • Configuration via Haltech IC-7 software and USB cable. • Screen size: 7in. Case size: 217 x 122mm (8.5″ x 4.8″)  The IC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behaviour including: • Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph. • Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tacho. • Display units. Eg. metric or imperial, Lambda or AFR. • The channel to be displayed at each location on the screen. • The connection method. Eg. Haltech CAN or OBD-II. • Shift light RPM points and colours. • Alarm thresholds, colour for on-screen display and shift lights, manual or auto reset methods. [pdf-embedder url="http://www.ohm-racing.com/wp-content/uploads/2019/11/dash-ic7.pdf" title="dash ic7"]
