STM Evo 4/5/6 Intercooler

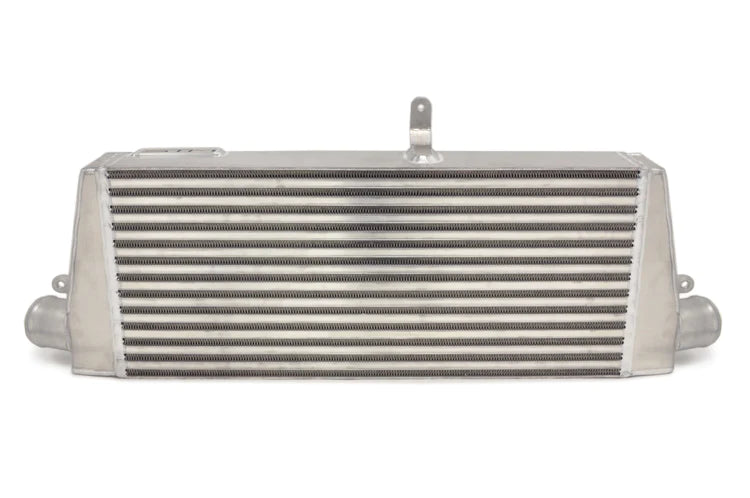

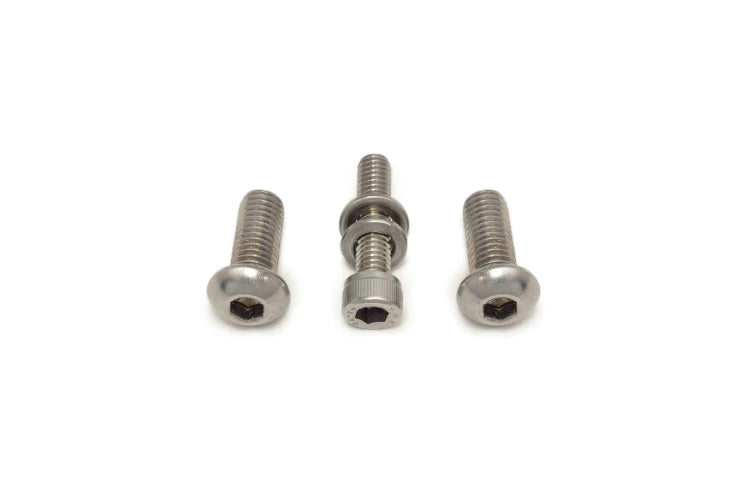

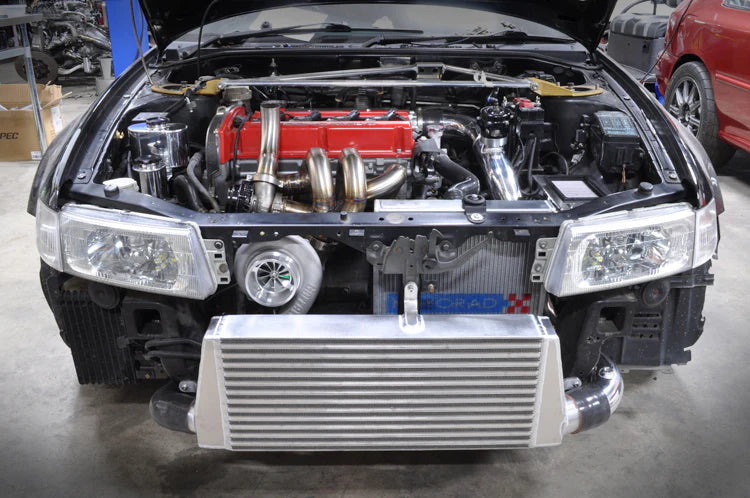

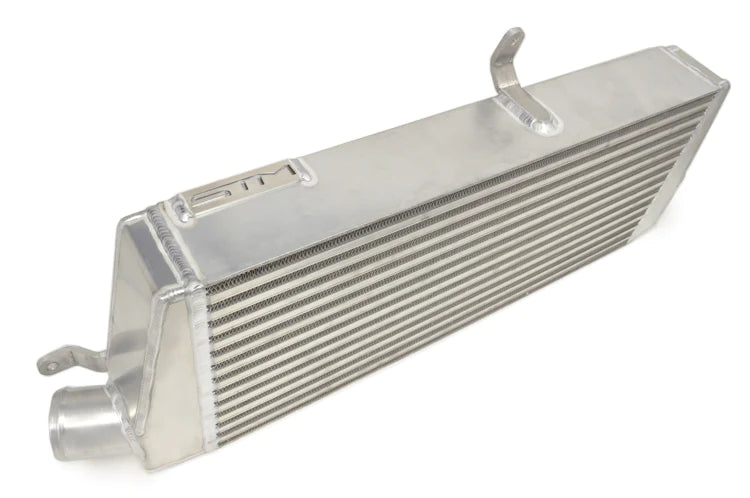

The STM Evo 4/5/6 Intercooler is made in-house from a 800 HP-rated 3.5" Garrett core with tig-welded, aluminum end tanks, bead-rolled 2.5" pipe outlets and pressure tested to 50 psi. This FMIC can be used with the STM Evo 4/5/6 lower intercooler pipe and the STM Evo 4/5/6 upper intercooler pipe kit. This is not confirmed to fit with the factory piping. Vehicle Fitment: 1996-2001 Mitsubishi Evolution 4/5/6 • Confirmed to fit with STM intercooler piping only • Does not fit Evo 4 GSR (A/C condenser is in the way) Install Notes: May require slight adjustment of power steering lines. Features: • 800 HP Rated Garrett Core • Core dimensions: 24" x 10.5" x 3.5" • Tig Welded Aluminum • 3.5" Core • 2.5" Bead-Rolled Pipe Outlets • Pressure tested to 50 psi Includes: (1) STM Intercooler (2) M8 x 20 Stainless Allen Bolts (1) M6 x 25 Stainless Allen Bolt (1) M6 Stainless Flat Washer (1) M6 Stainless Lock Washer Shipping Times: 1-14 Days Hand crafted and welded in New York, please give our fabricators time to assemble your parts!
